BendPak HD-7500BLX 7,500 Lb. Capacity / Vehicle & Boat Storage Lift / 82″ Rises
Original price was: $8,766.90.$1,499.00Current price is: $1,499.00.
BendPak HD-7500BLX 7,500 Lb. Capacity / Vehicle & Boat Storage Lift / 82″ Rise

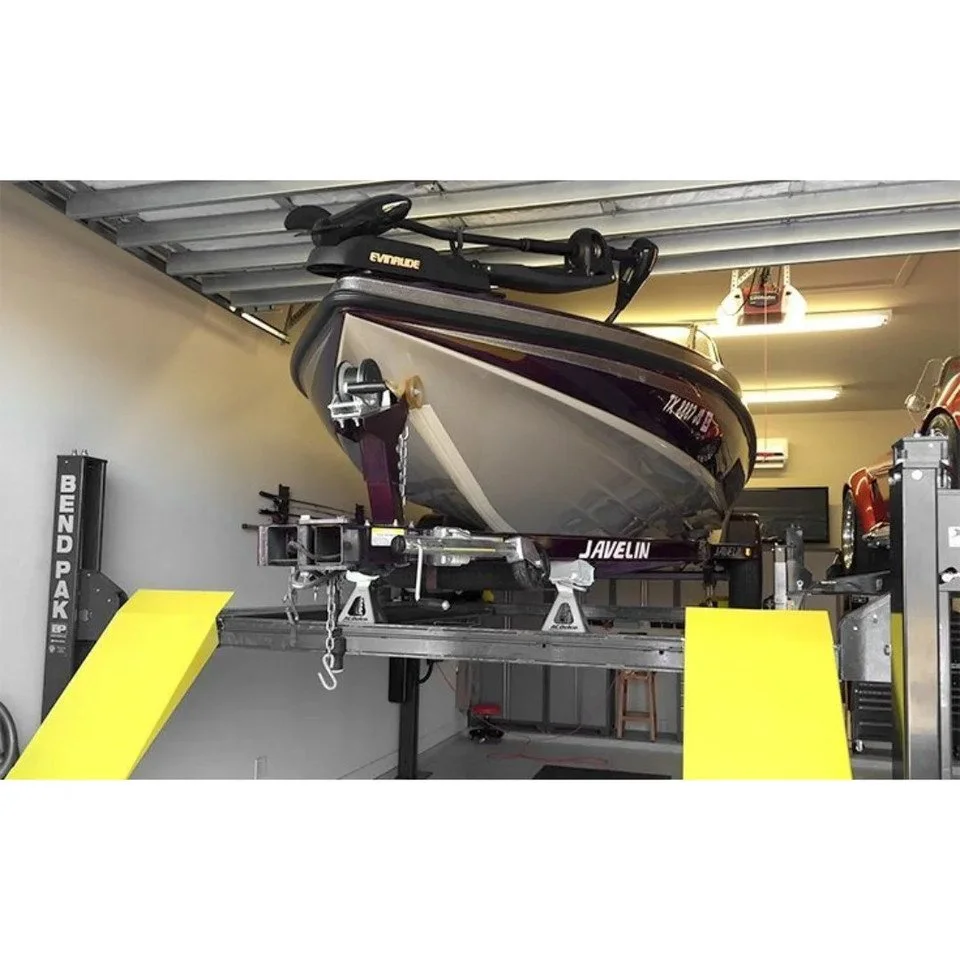

Never trust your precious boat to the unpredictability of the water, nor should you pay for dry docks and/or yard storage. Salt water corrosion, barnacles, rust damage, rub marks, coating blemishes, rot and cold weather can do irreversible harm caused to your boat’s engine and interior. The longer you go without a boat lift, the more you leave yourself open to catastrophe.

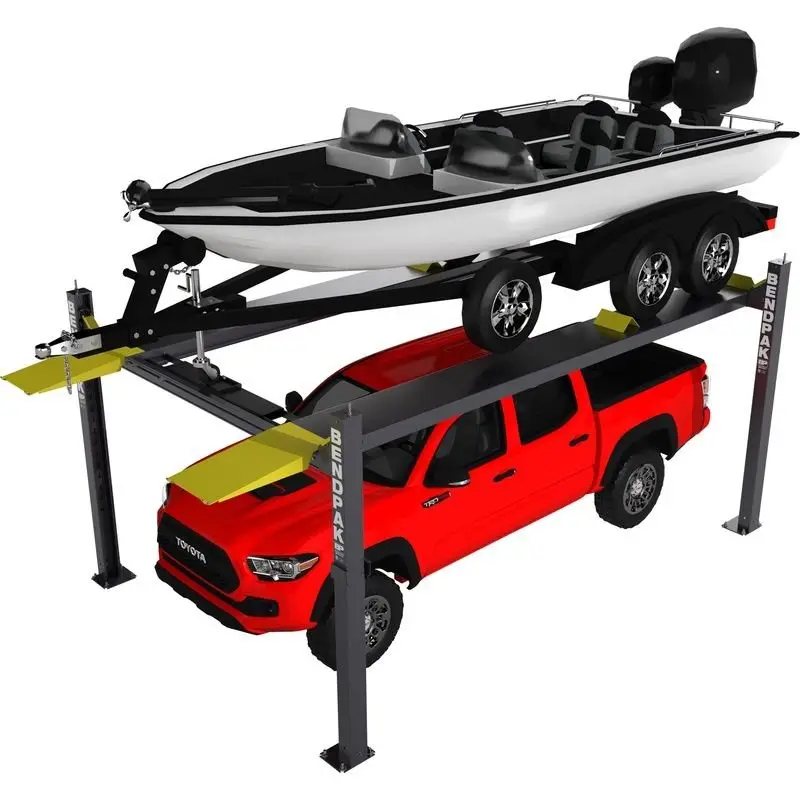

BendPak has the perfect solution: Keep your boat up in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500BLX pulls double-duty as a professional-grade car lift for ground vehicles.
Features
- 7,500-pound lifting capacity.
- Two different lifting heights to choose from.
- Electric / hydraulic power system.
- Internal anti-sway slider blocks in each column.
- Both models feature heavy-duty 3/8″ aircraft cable.
- Multi-position safety locks in each column.
- Runways include rail-kit for optional accessories.
- Single hydraulic cylinder underneath runway.
- Over-sized self-lubricating cable rollers.
- Rugged 1-1/4″ roller axles.
- Adjustable lock ladders.
- Push-button pneumatic safety release.
- Durable powder coat finish.
Specifications
| Model | HD-7500BLX |
| Lifting capacity | 7,500 lbs. / 3,402 kg |
| Maximum capacity front axle | 3,750 lbs. / 1,701 kg |
| Maximum capacity rear axle | 3,750 lbs. / 1,701 kg |
| a Min. Runway Height, Lowered | 5 in. / 125 mm |
| b Maximum Rise | 82 in. / 2,082 mm |
| c Maximum Lifting Height | 87 in. / 2,208 mm |
| d Overall Width (see note 2) | 133.76 (±.125) in. / 3,397.5 (±3.2) mm |
| e Outside Length | 198 in. / 5,028 mm |
| f Overall Length | 224.5 in. / 5,703 mm |
| g Height of Post (see note 3) | 100 in. / 2,537 mm |
| h Distance Between Posts | 122.165 in. / 3,103 mm |
| i Drive-Through Clearance, Width | 108.5 in. / 2,758 mm |
| j Runway Width | 19 in. / 482 mm |
| k Runway length | 182.25 in. / 4,629 mm |
| l Width Between Runways | 46.5 in. – 66.5 in. / 1,181 mm – 1,689 mm |
| m Runway Centerline | 8.5 in. (narrow) or 88.5 in. (wide) / 1,740 mm or 2,247 mm |
| n Outside Edge of Runways | 87.5 in. (narrow) or 107.5 in. (wide) / 2,221 mm or 2,728 mm |
| o Drive-Thru Clearance, Height | 81 in. / 2,055 mm |
| Min. Wheelbase @ rated capacity 1 | 130 in. / 3302 mm |
| Min. Wheelbase @ 75% capacity 1 | 110 in. / 2794 mm |
| Min. Wheelbase @ 50% capacity 1 | 95 in. / 2413 mm |
| Min. Wheelbase @ 25% capacity 1 | 75 in. / 1,905 mm |
| Locking Positions | 17 spaced every 4 in. / 102 mm |
| Lifting time | ≈50 seconds |
| Motor | 208-230 VAC, 60 Hz, 1 Ph., 18 Amps, 3 HP. |
| Air supply | 3 to 25 cfm at 50 to 150 psi max. |
1. The Lift supports less weight than its rated capacity as the Vehicle’s wheelbase is reduced. This reduction in capacity is due to the vehicle’s wheels moving closer to the middle of the Runways, where less structural support exists. For example, the maximum weight allowed on the HD-75BXT for a Vehicle with a wheelbase of 110 inches is 50 percent of the Lift’s rated capacity or 3,750 lbs.
2. The Safety Ladder fasteners extend horizontally past the Post by .75 in. / 19 mm on all four Posts. This larger dimension should not be used to create the Chalk Lines for the Lift Installation, but the additional clearance is required around all four Posts.
3. The Safety Ladder adjustment adds an additional 3.25 inches max. to the Post height.
